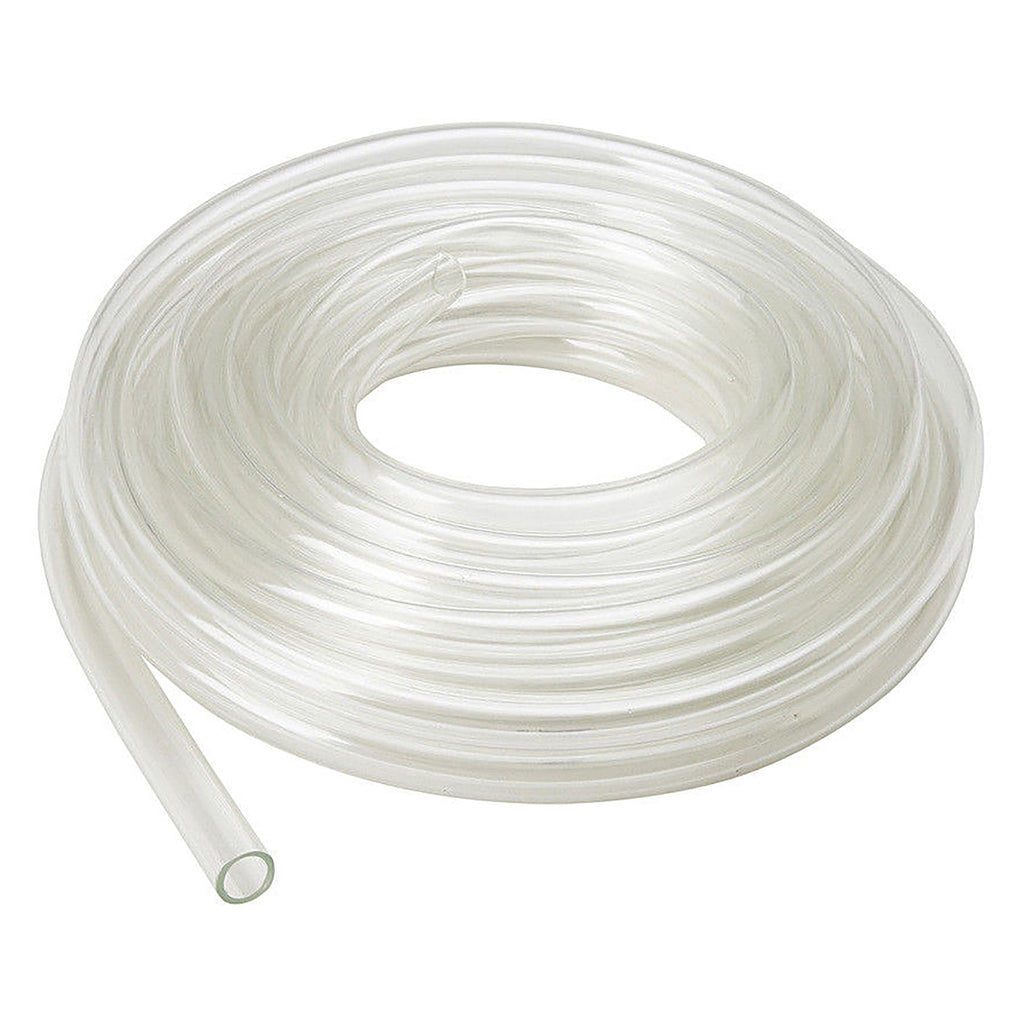

PTFE FEP Clear Ester Polyurethane Chemical Tubing

NewageSKU: 1300
No reviews

Grid List
1/8 in. ID 1/4 in. OD Ester (100 ft)
I.D.:
O.D.:
Price:
Sale price$41.00

Note: Priced . Sold in quantities of 1.

Description
SKU
Price
Qty.
1/16 in. ID 1/8 in. OD Ester (100 ft)
1298
$23.00
1/8 in. ID 3/16 in. OD Ester (100 ft)
1299
$28.00
1/8 in. ID 1/4 in. OD Ester (100 ft)
1300
$41.00
3/16 in. ID 1/4 in. OD Ester (100 ft)
1301
$33.00
1/4 in. ID 3/8 in. OD Ester (100 ft)
1303
$62.00
1/4 in. ID 1/2 in. OD Ester (100 ft)
1304
$138.00
5/16 in. ID 7/16 in. OD Ester (100 ft)
1305
$71.00
3/8 in. ID 1/2 in. OD Ester (100 ft)
1306
$81.00
3/8 in. ID 5/8 in. OD Ester (100 ft)
1307
$2.11
1/2 in. ID 5/8 in. OD Ester (100 ft)
1308
$108.00
1/2 in. ID 3/4 in. OD Ester (100 ft)
1309
$230.00
5/8 in. ID 7/8 in. OD Ester (100 ft)
1310
$258.00
3/4 in. ID 1 in. OD Ester (100 ft)
1311
$293.00

Product has been added to your cart

Please input the Quantity!

Description

Features
  • Available in Ester or Ether formulations
  • Both formulations made from non-toxic ingredients conforming to FDA standards for use with wet and fatty food contact surfaces
  • Transparent, flexible, resilient, tough; resistant to oils, greases, and fuelsÊ
  • Extremely resistant to weathering, tearing, impact, radiation, and abrasion
  • Wide range of temperature resistance: -95F to 185F (ester)
  • Ether-based material is listed by the National Sanitation Foundation (NSF 61) for use with potable water
  • Contains no plasticizer which could cause flow contamination or tube hardening
  • Can be heat sealed, coiled, fabricated, or bonded

Notes

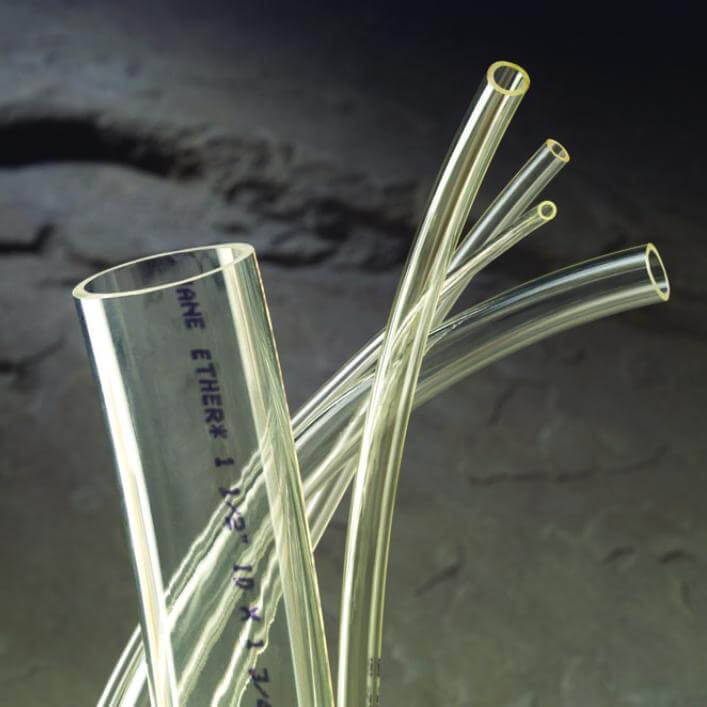

Hydrolytic Stability - For resistance to moisture and fungi, SUPERTHANE ether is recommended. (Ester polyurethane does not react well with water, prolonged humid conditions, or attack from fungi.) Ether-based SUPERTHANE also resists attack from ultra-violet rays, making it a good material for outside use. The material used in its manufacture is listed by the National Sanitation Foundation (NSF 61). SUPERTHANE is much more resistant to pressure and vacuum applications than corresponding sizes of PVC or rubber. Although polyurethane is commonly used in fuel applications, due to additives in today's gasoline and petroleum products, field testing should be performed. When used with thermo barb fittings, SUPERTHANE will not require clamps, provided that working pressures remain at or below 105 psi at ambient temperature. Custom coiled polyurethane is available - call for details. For easy identification, SUPERTHANE is imprinted with the trademarked name.

Physical Properties** ESTER ETHER
Hardness, Shore A ±5 85 85
Tensile Strength, psi 6000 5500
Elongation at Break, % 550 580
Brittle Temperature, ÁF -95 -90
Max. Continuous Operating Temp. ÁF185 175

**Values listed are typical for the material used in manufacture, except where noted, and are meant only as a guide to aid in design. Field testing should be performed to find the actual values for your application.
